Overview :
- Modular design quickly fulfills customization request.
- Various middleware and program security platforms are supported.
- The add-on design supports feature extensions such as DMS, DMP, homeplug and HPNA in STB.
- Cable modem DOCSIS 2.0 on chip.
- Supports dual antennas for dual-tuner PVR.
Specification :
CPU
- 450MHz, DOCSIS 2.0 CM on Chip
Memory
- NAND Flash: 128MB
- DDR2: 384MB
Tuner x 1 (x2 optional) Application Brief
- Live TV Zapping
- EPG
- Dual tuner PVR
- PIP
- TimeShift

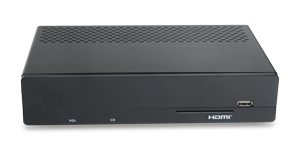

Front Panel
- Smart card x 1
- USB x 2
- LEDs: IR, Power, CM
- Touch panel buttons for volume and channel change; Menu; Control set(↑/↓/←/→/ok)
- 4x7 segment display
Rear Panel
- SPDIF (Coaxial) x 1
- HDMI x 1
- CVBS, YPbPr, L/R
- RJ45 x 1
- RF in x 1; RF out x 1
- DC Power Jack
- IR Eextender

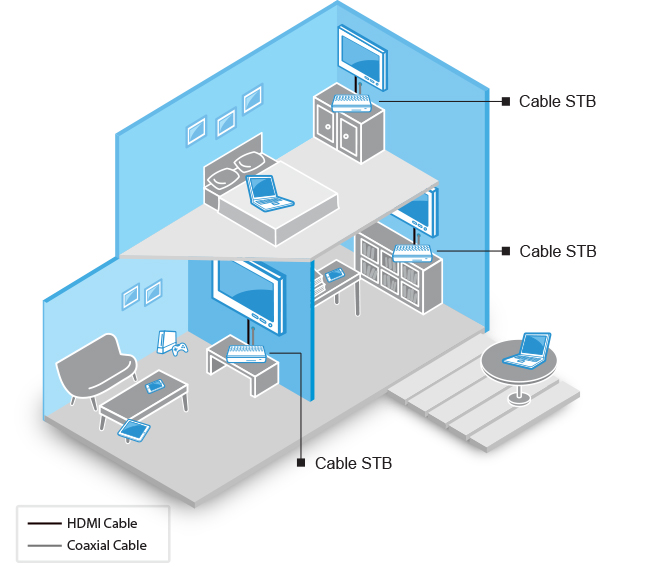

Application Diagram :
|
