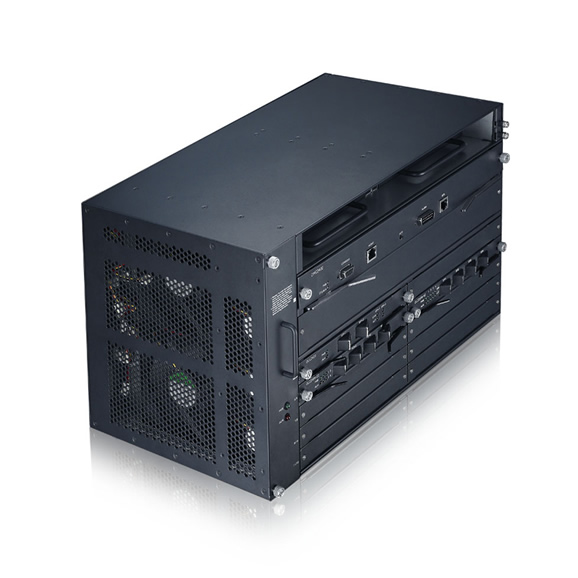

Medium capacity Chassis MSAN

Overview :

  • 8 to 32 PON Ports with small and medium capacity. Non-blocking GPON/EPON OLT offers high bandwidth with full load configuration by a competitive cost structure with high quality.
  • Support of redundant network interface card mechanism and PON subscriber fiber port redundant protection guarantee the high reliability of services. Enhanced OAM function can provide quick fault detection and precise fault isolation.

Specification :

  • 32 ITU-T G.984-compliant GPON ports; each port supports up to 64 ONT.
  • 2 management and switching cards plus 2 power modules for redundancy.
  • 4 10- GbE uplink ports or dual 40G uplink ports.
  • 4 PON or GbE ports per line card.
  • ITU-T G.984.1 type-A and type-B protection.
  • Temperature-hardened.
  • All front-access and hot-swappable.
  • Internet Group Management Protocol Versions 2 and 3 (IGMPv2 and v3) provides IPTV services.
  • Rate limiting allows service differentiation and guarantees quality of service.
  • Access control enhances network security.
  • User friendly configuration and management simplifies daily operation.
  • Anti-IP/MAC address spoofing prevents malicious attack.
  • Comprehensive QoS enhances triple play users' experience.

Application Diagram :
